Outils
- Dry flashlight
- Clean dry lint-free cloth for approved exterior surfaces
Inspect and clean an EV charge-port exterior
Resolve ordinary external debris or moisture only; never probe, scrape or repair energized contacts.
10–20 min2 outilsev
Pièces et fournitures
Aucune pièce requise.
Avant de commencer
- Vehicle is not charging and is switched off
- No heat, melting, arcing, smoke or damage is present
Une étape à la fois
Les vues réalistes montrent le composant et le geste de chaque étape. La disposition exacte varie selon le véhicule; confirmez toujours l’accès dans le manuel applicable.
ÉTAPE 1
Read the charge status
Record the exact vehicle and EVSE lights/messages and whether AC, DC or one location is affected.
Point de contrôleA supply/EVSE problem is not being assumed to be a port repair.

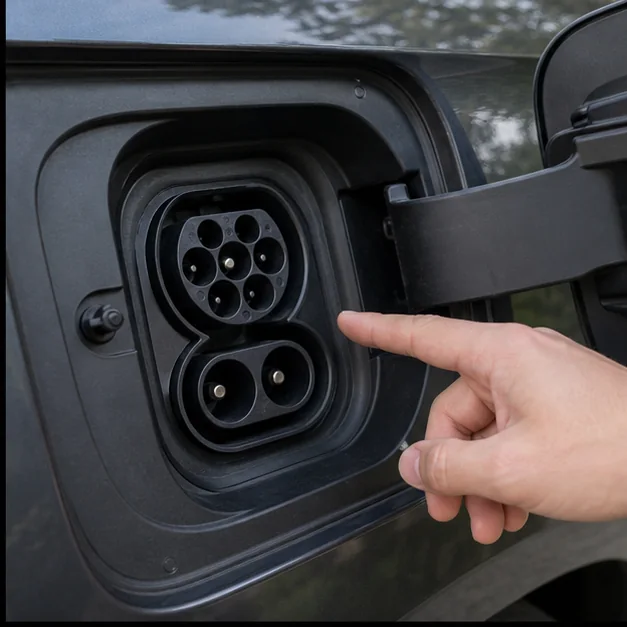

ÉTAPE 2
Inspect without touching contacts
Open the door and visually check for ordinary snow, dirt or external moisture, damaged pins, discoloration or foreign objects.
Point de contrôleNo hazard sign requires roadside or qualified EV service.

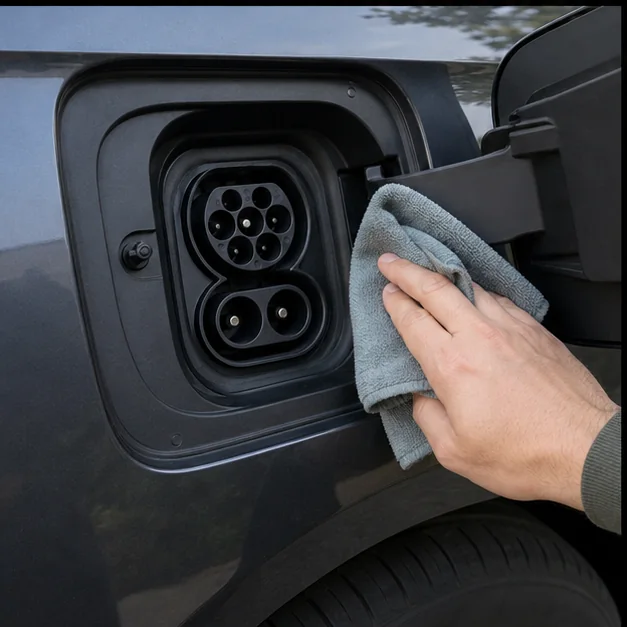

ÉTAPE 3
Clean only approved exterior areas
Use the owner-manual method to remove loose exterior contamination; allow permitted moisture to dry naturally.
Point de contrôleNothing is inserted into, scraped across or sprayed into electrical contacts.

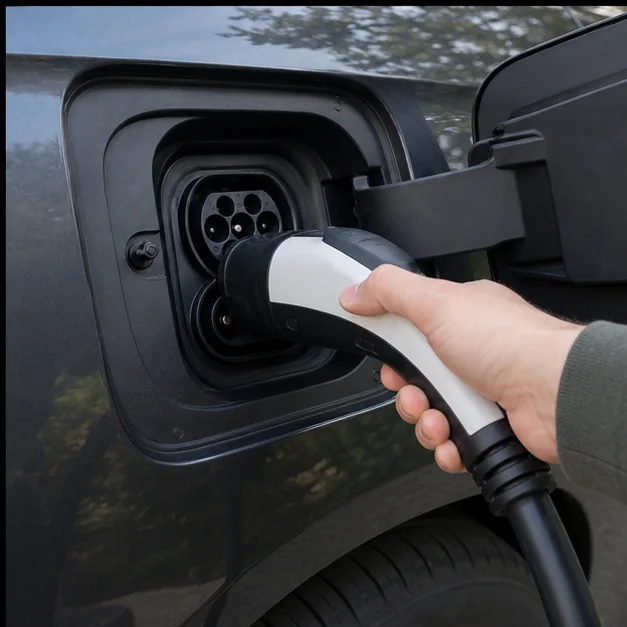

ÉTAPE 4
Try one known-good source
If undamaged and dry, attempt one known-good compatible charger and record the result.
Point de contrôleRepeated failure proceeds to EVSE/vehicle diagnostic testing, not repeated plugging.
Vérification après réparation
- Port remains cool and undamaged
- Connector locks normally
- Charge result and message are recorded
