Outils
- Eye protection and gloves
- Insulated hand tools
- Battery carrier
- Scan tool when registration is required
Replace a serviceable 12-volt battery
Replace only after capacity and charging tests support battery failure and exact registration requirements are known.
45–120 min4 outilselectrical
Pièces et fournitures
- Exact group size, chemistry, capacity and vent configuration
Avant de commencer
- Battery failure is tested rather than assumed
- Replacement coding, venting and relearns are known
Une étape à la fois
Les vues réalistes montrent le composant et le geste de chaque étape. La disposition exacte varie selon le véhicule; confirmez toujours l’accès dans le manuel applicable.

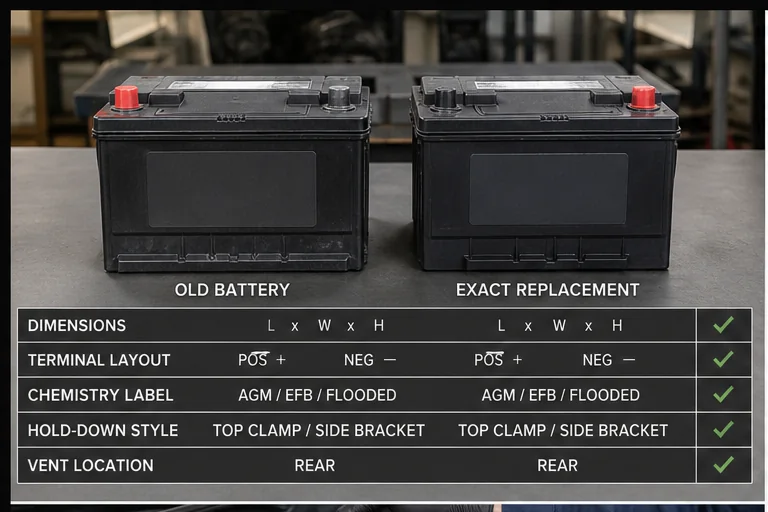

ÉTAPE 1
Verify the replacement
Match battery chemistry, dimensions, terminal layout, capacity, hold-down and vent requirements.
Point de contrôleAGM/EFB/flooded type is not being substituted without authorization.

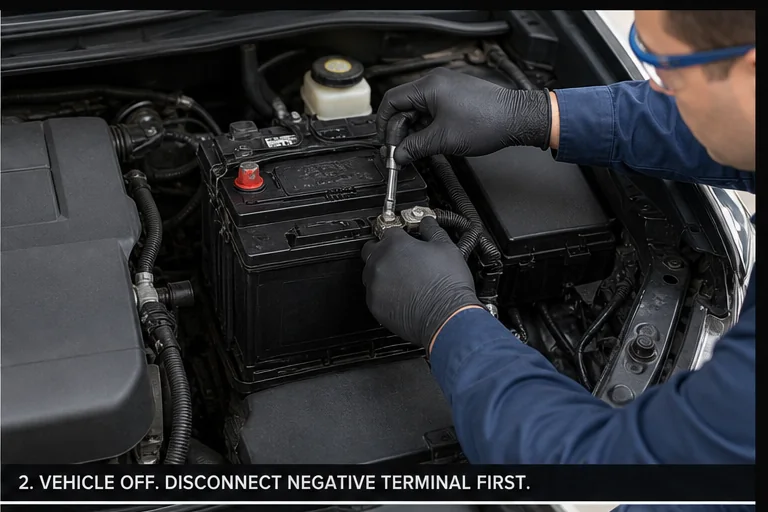

ÉTAPE 2
Power down correctly
Follow the exact shutdown and sleep period, preserve required settings and disconnect negative first.
Point de contrôleThe vehicle cannot wake or auto-start during service.

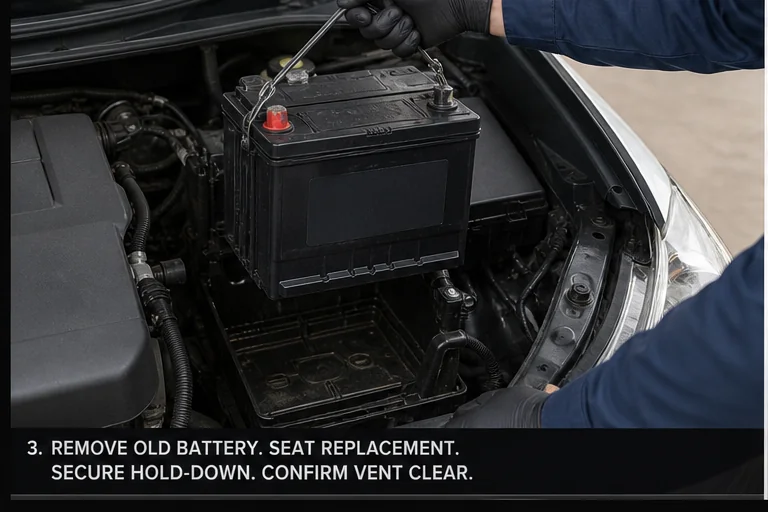

ÉTAPE 3
Exchange and secure
Remove the hold-down, lift safely, clean the tray and install the replacement with its vent and hold-down exactly positioned.
Point de contrôleThe battery cannot move and no cable is strained.

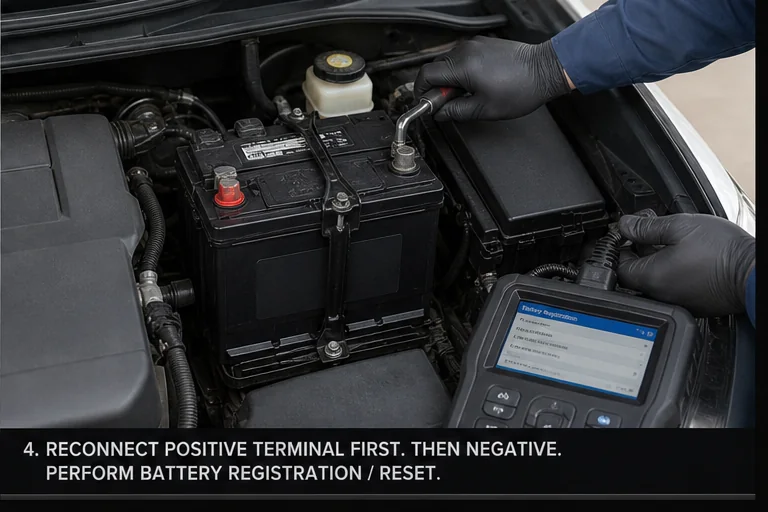

ÉTAPE 4
Reconnect and register
Reconnect in the documented order, torque connections and perform battery registration or resets where required.
Point de contrôleCharging strategy recognizes the new battery and all safety systems initialize normally.
Vérification après réparation
- Normal crank or READY
- Charging-system test passes
- Battery registration and relearns completed
