Outils
- Plastic trim tool
- Masking tape
- Clean cloth
Replace a push-on door weatherstrip
Replace a verified removable seal without disturbing airbags, wiring or bonded glass.
30–75 min3 outilsbody
Pièces et fournitures
- Exact door-position weatherstrip
- Approved cleaner or adhesive only if specified
Avant de commencer
- Leak path has been verified
- Seal is a documented removable service part
Une étape à la fois
Les vues réalistes montrent le composant et le geste de chaque étape. La disposition exacte varie selon le véhicule; confirmez toujours l’accès dans le manuel applicable.

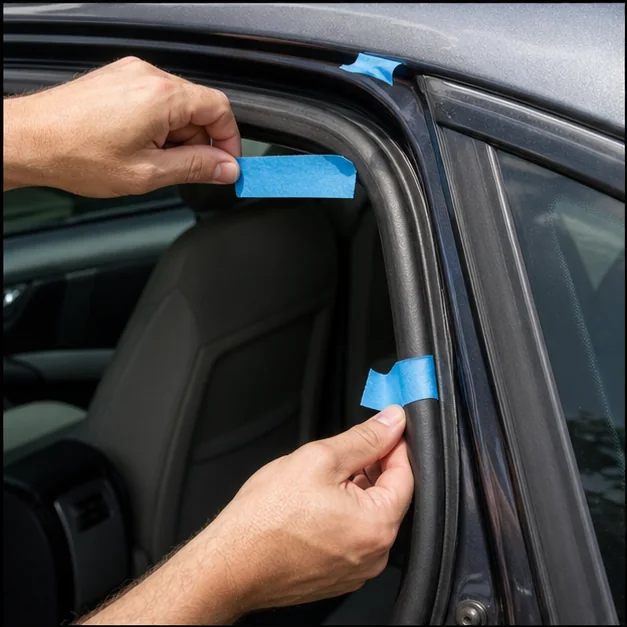

ÉTAPE 1
Mark and document
Photograph joints, molded corners and orientation; mark the starting position with low-tack tape.
Point de contrôleThe correct door and exact seal are confirmed.

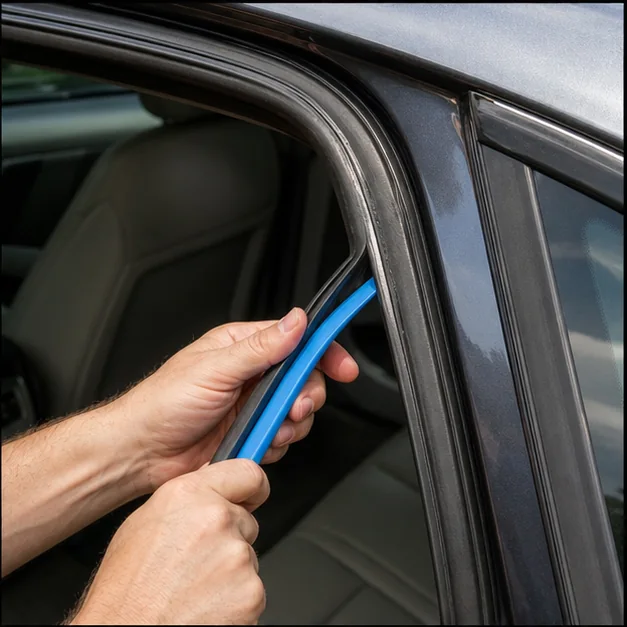

ÉTAPE 2
Remove progressively
Release the seal a short section at a time using the documented method, noting clips and adhesive areas.
Point de contrôlePaint, pinch weld and trim remain undamaged.

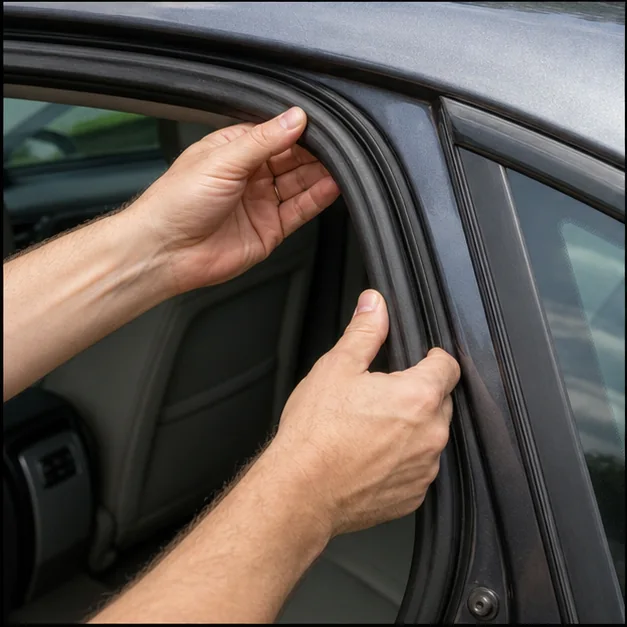

ÉTAPE 3
Clean and install
Clean the mounting surface with an approved product and seat the new seal from the indexed joint around the opening.
Point de contrôleCorners are not stretched and every clip or channel is fully engaged.

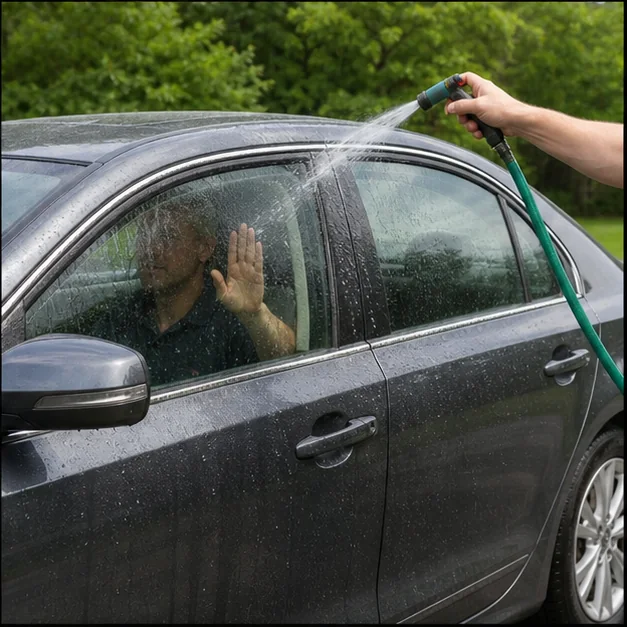

ÉTAPE 4
Verify sealing
Close the door gently, check gaps and perform a controlled low-pressure water test with an observer inside.
Point de contrôleWater is kept away from powered modules and the leak path is verified, not flooded.
Vérification après réparation
- Even door gap and closing effort
- No folded or stretched seal
- Controlled water test remains dry
